To perform measurements and tests, we have a selection of different high-voltage laboratories at the Institute of High Voltage Engineering:

Additional laboratories

In addition to the laboratories listed above for special test set-ups, the institute also has 6 100 kV laboratories with the following equipment:

  • DC sources:
    • 30 kV (+/-) und 5 mA
    • 60 kV (+/-) und 10 mA
  • AC sources:
    • 12 kV (25 - 400 Hz)
    • 10 kV (50 Hz)

  • Test transformers: 100 kV und 50 mA, 5 kVA
  • PD Measurement Systems

  • Space charge measurement systems:
    • PEA system for plate test samples

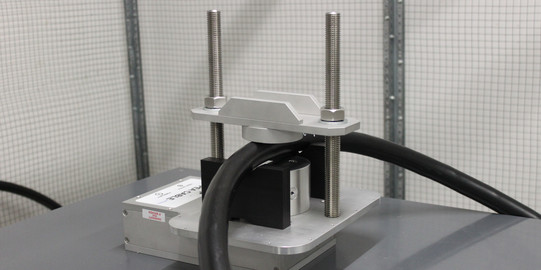

    • PEA system for cable test samples
  • LCR Meter

  • C/loss factor measuring system

  • Climatic chambers: -40 °C bis 180 °C and rel. humidity of 10-98 %

  • Surge current system (100 kA)

  • Alternating bending machine
