Climate test chamber


Climatic mode:

  •     Temperature range: -40°C-180°C
  •     Maximum temperature for long-term studies: 120°C
  •     Maximum temperature rise: 0.5°C/min
  •     Maximum temperature decrease: 0.7°C/min
  •     Humidity: ~0-100% (limitations depending on temperature range)
  •     Automated acquisition of climate data

High voltage supply

  •     AC and DC voltages up to 100 kV
  •     Mixed stresses possible
  •     Bipolar setups possible

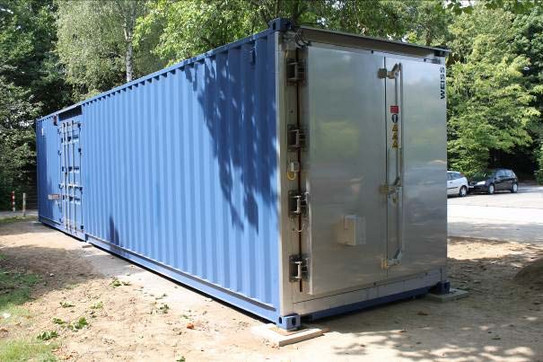

climate chamber Container © HST​/​TU Dortmund

The climatic chamber is divided into a machine room and a climatic room. This makes it possible to set up the circuit for generating the test voltage in the machine room unaffected by the test climate, while the test object inside the climate room can be stressed simultaneously with the generated voltage and the set climatic conditions.
